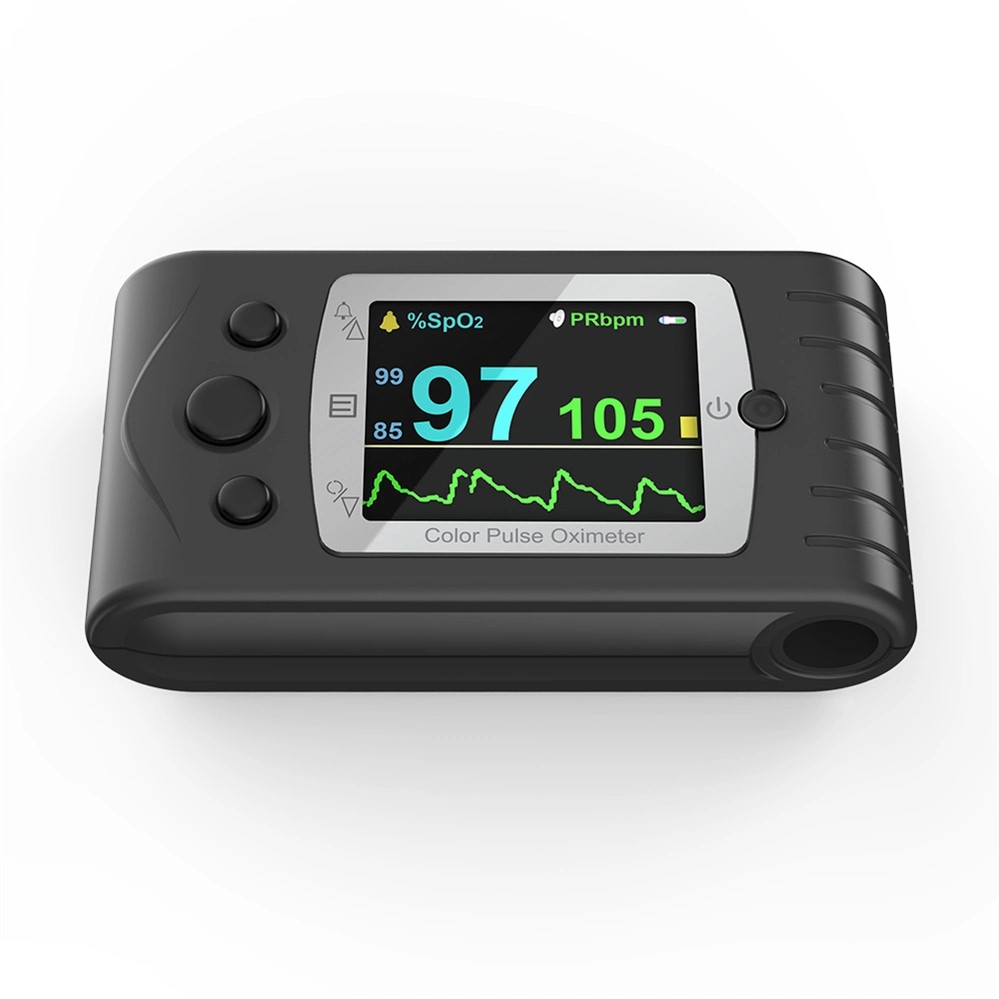

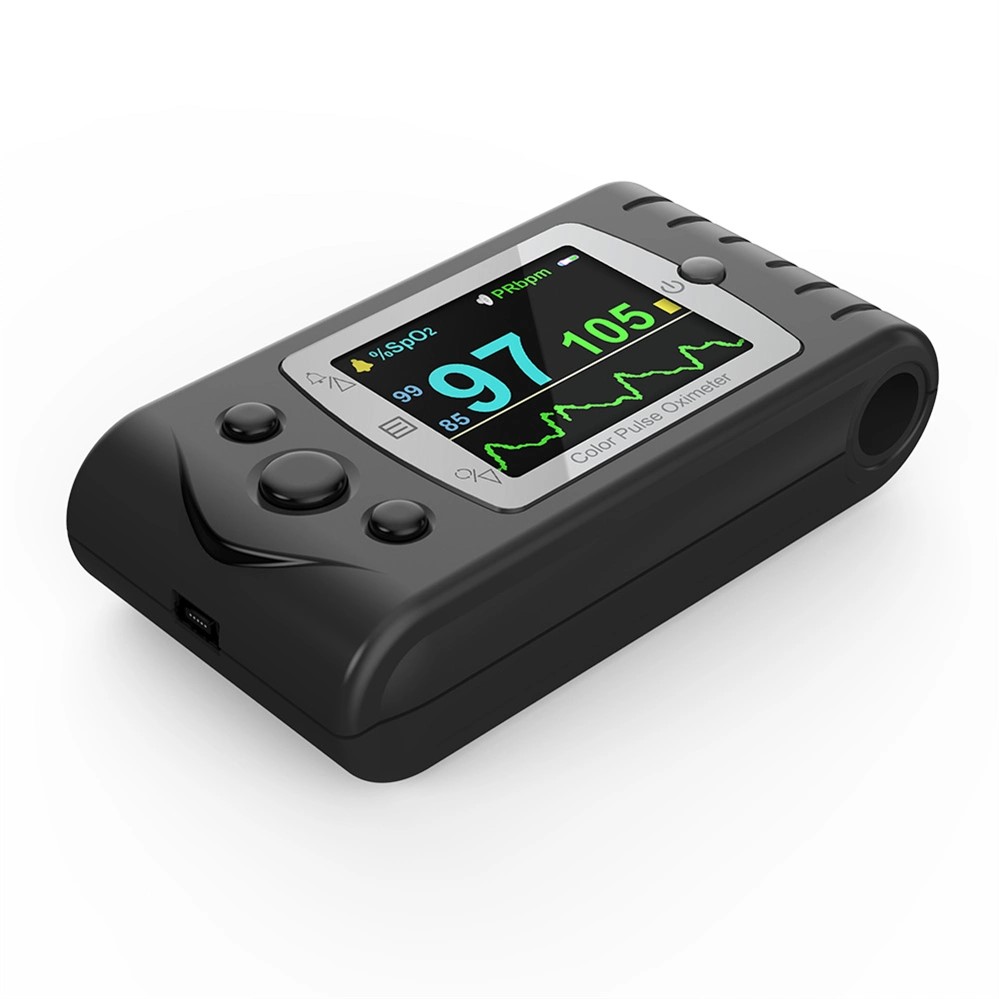

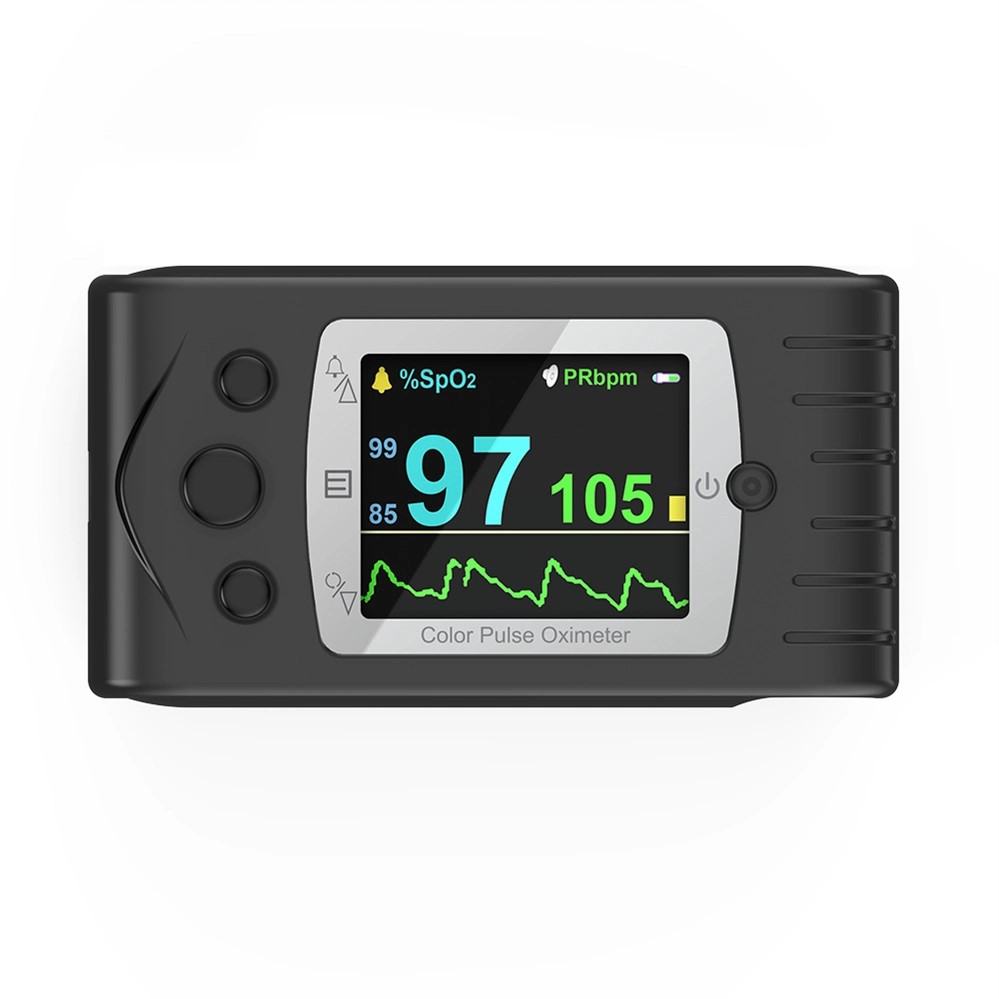

CMS60C Handheld Finger Clip Pulse Oximeter

Handheld Finger Clip Pulse Oximeter Use:

The CMS 60C Handheld Finger Clip Pulse Oximeter is an essential tool for monitoring blood oxygen saturation (SpO2) and pulse rate. It is widely used by healthcare professionals, including doctors, nurses, and medical technicians, to quickly and accurately assess a patient’s oxygen levels and heart rate. This device is also valuable for medical students and nurses in training, providing hands-on experience in patient monitoring. Its compact and portable design makes it suitable for use in surgery centers, hospitals, clinics, community healthcare settings, and even at home for personal health monitoring. This pulse oximeter is especially beneficial for individuals with respiratory or cardiovascular conditions, athletes, and those concerned about their health.

Product Specifications:

The CMS 60C Handheld Finger Clip Pulse Oximeter offers a range of features designed to provide accurate and reliable readings with ease of use:

Features:

• Compact and Lightweight: Small in volume, light in weight, and convenient to carry, making it ideal for use in various settings.
• Operation Menu: Provides a user-friendly operation menu for function settings.
• SpO2 Value Display: Clearly displays oxygen saturation levels.
• Pulse Rate Display: Shows pulse rate values along with a bar graph display for easy reading.
• Pulse Waveform Display: Provides a visual representation of the pulse waveform.
• Adjustable Brightness: Screen brightness can be changed to suit different lighting conditions.
• Pulse Rate Sound Indication: Audible sound indication for pulse rate, aiding in monitoring.
• Overrun Prompt Function: Adjustable upper and lower limit settings with an overrun prompt function.
• Battery Capacity Indication: Displays the remaining battery capacity to ensure timely replacement.
• Low-Voltage Indication: Alerts when the battery voltage is low to prevent abnormal operation.
• Data Storage Function: Stores data that can be uploaded to a computer for analysis.
• Real-Time Data Transmission: Capable of transmitting data in real-time.

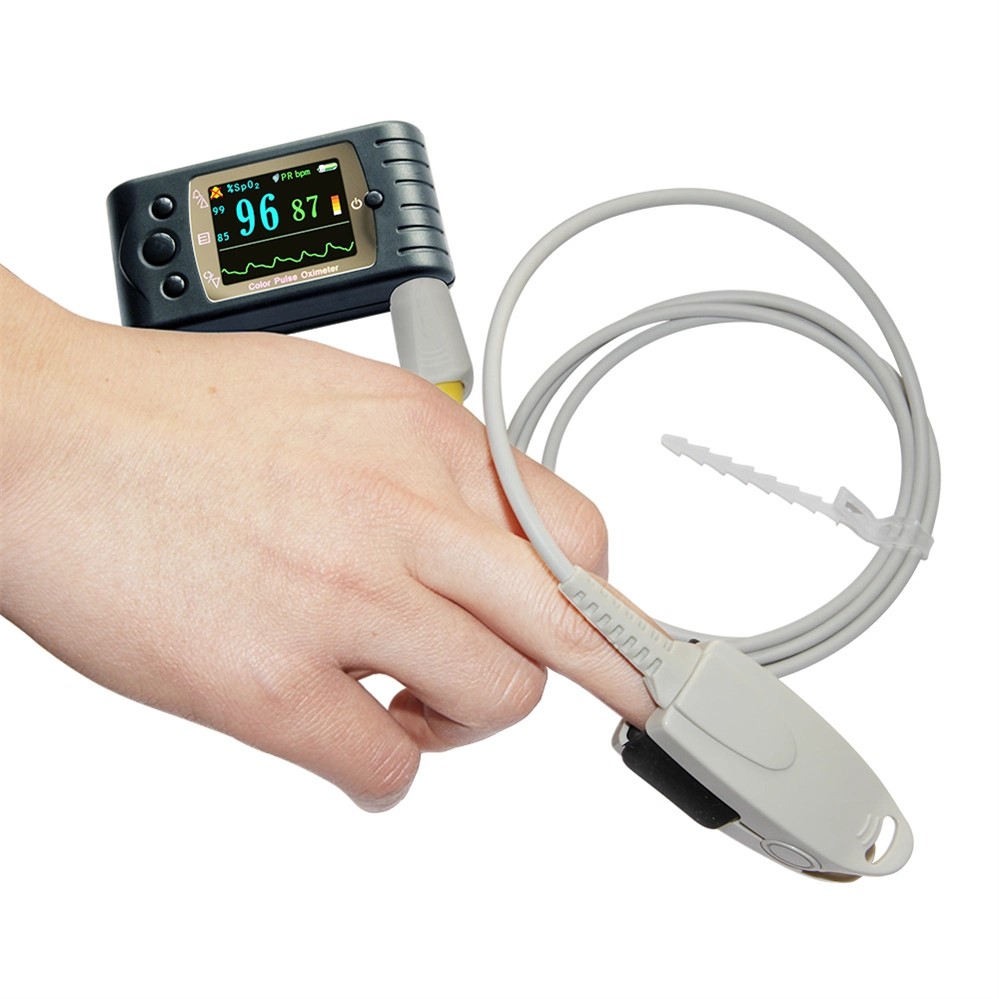

• External SpO2 Probe: Includes an external SpO2 probe for enhanced measurement accuracy.

Performance:

• Display Mode: 1.77” color screen.
• Screen Resolution: 128*160.
• SpO2 Measuring Range: 0%-100% (resolution is 1%).
• Accuracy: 70%-100%: ±2%, 0%-69%: unspecified.
• PR Measuring Range: 30bpm~250bpm (resolution is 1bpm).
• Accuracy: ±2 bpm (30 bpm ~ 99 bpm), ±2% (100 bpm ~ 250 bpm).
• Low Perfusion Accuracy: SpO2 and pulse rate can be shown correctly when the pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm (30 bpm ~ 99 bpm), ±2% (100 bpm ~ 250 bpm).
• Light Interference: Under normal and ambient light conditions, SpO2 deviation ≤ 1%.
• Power Consumption: ≤ 100mA.
• Working Voltage: DC 3.6V-4.2V.
• Battery: 3.7V rechargeable lithium battery × 1.
• Battery Life: No less than 500 charge and discharge cycles.
• Safety Type: Internally powered equipment, Type BF applied part.

Accessories:

Standard:

• User Manual (1pc).
• Data Line (1pc).
• SpO2 Probes (1pc).

Optional:

• Power Adapter.
• Other SpO2 Probes.

Physical Characteristics:

• Dimensions: 87(L) × 45(W) × 22(H) mm.
• Weight: About 68g (with one lithium battery).
