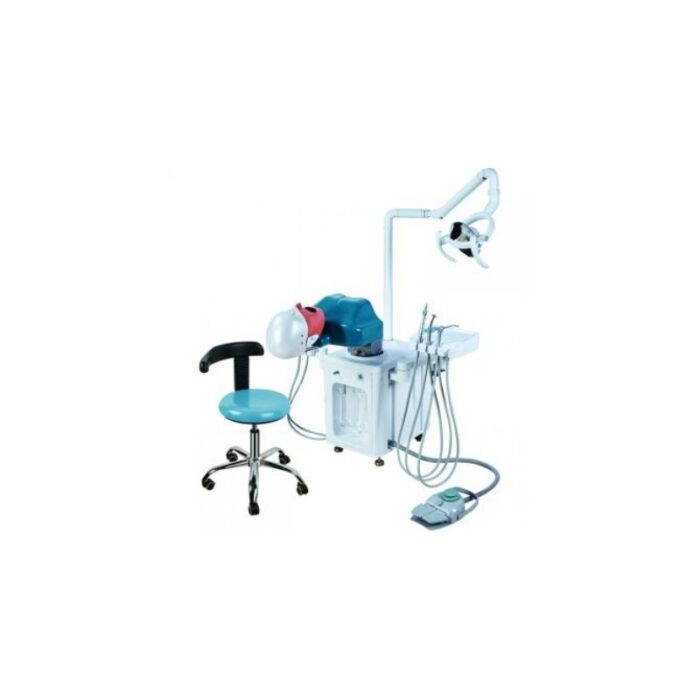

LK-OS13 Full Automatic Dental Simulation Unit

Feature:
Simulation teaching system mainly includes:

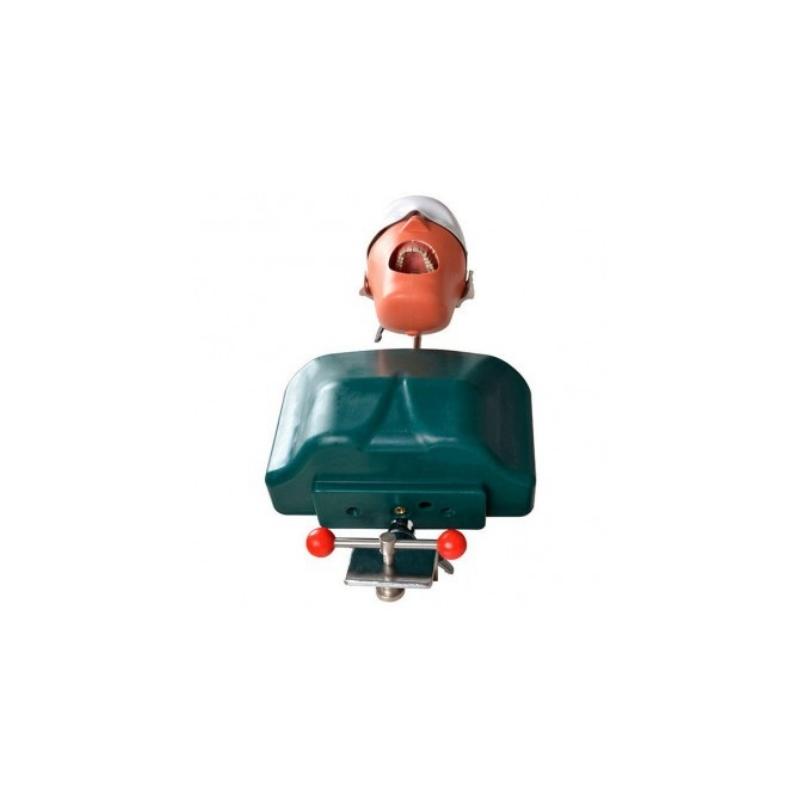

Electric part, Moveable simulation treatment machine, Simulated simple head model, High(Low)-Speed handpiece,
3-way Syringe, Air suction, Foot control, Halogen oral lamp, Dentist stool, Water storage bottle.

Specification:
(1)Power supply:AC 220V, 50Hz
(2)Input power:1200VA
(3)Blown fuse specifications:FR1-20, φ5×20, currency 3.0A
(4)Motor:DC24V/150VA
(5)Handpiece Data:(Inlet air pressure:250KPA)
A. High-speed Handpiece:
Air Pressure: 0.28Mpa-0.30Mpa
Rotation : 300,000-35,000rmp
Bur applicable: φ1.595-1.600mm
Noise: ≤70dB
B. Low-speed Handpiece:
Air Pressure: 0.3Mpa-0.35Mpa
Rotation : 20,000-30,000rmp/min
Bur applicable: φ2.335-2.355mm
Noise: ≤70dB
(6)Environmental condition:
Temperature 5 ~ 40°C
Relative humidity≤80%
Air pressure:806 ~ 106kPa
